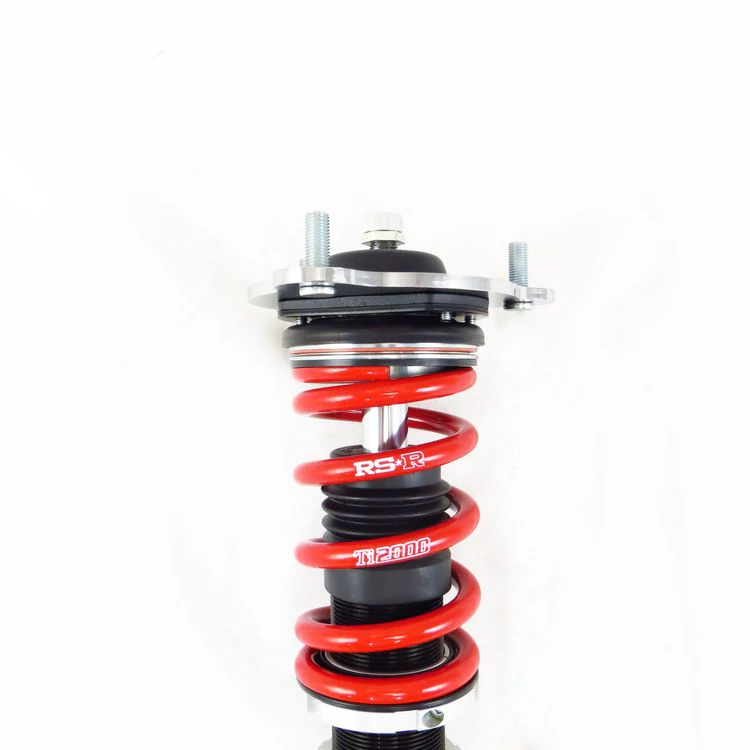

Part Number: XBIH034MA Compatibility: 2023+ Honda Civic Type R Chassis code: FL5

Product Details

Part Number: XBIH034MA Compatibility: 2023+ Honda Civic Type R Chassis code: FL5

Preset Approximate Height

Front: -5mm to -45mm

Rear: -10mm to -55mm

Maximum Adjustment Range

Front: +5mm to -50mm (-0.2in to -2.0in)

Rear: -10mm to-55mm (-0.4in to -2.2in)

Recommended Adjustment Range

Front: -5mm to -45mm (-0.2in to -1.8in)

Rear: -10mm to -55mm (-0.4in to -2.2in)

Spring Rate

Front: 8.00kg/mm Rear: 6.00kg/mm

Additional Information

Compatible with the Factory Adaptive Damper System Factory rear upper mount needs to be re-used Dampers are 36 way adjustable in the front and the rear

Warranty: 1 Year / 12,000 miles from the day of purchase Included but not pictured: hex and allen wrench, rubber and poly seat for rear adjuster, flange nut for rear, zip ties, and harness for rear
