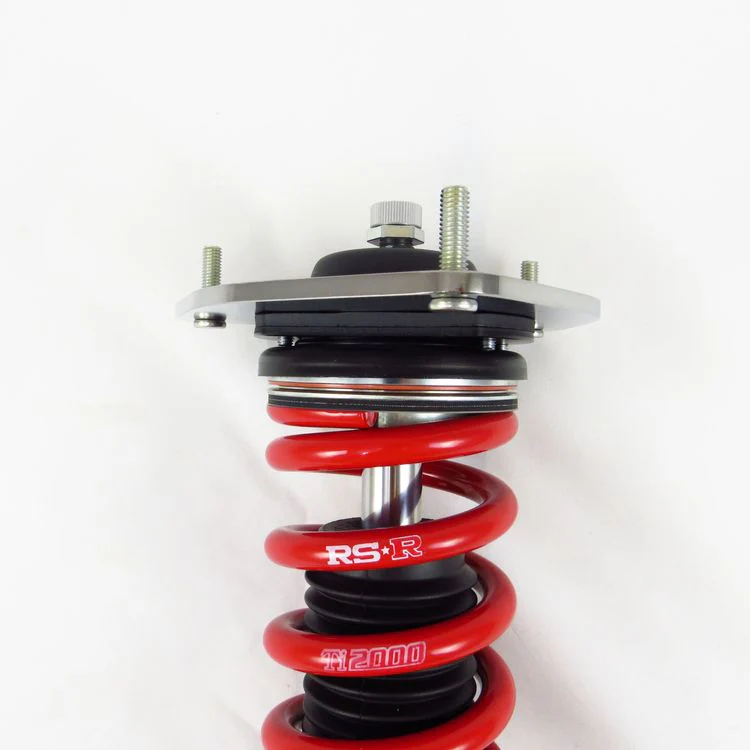

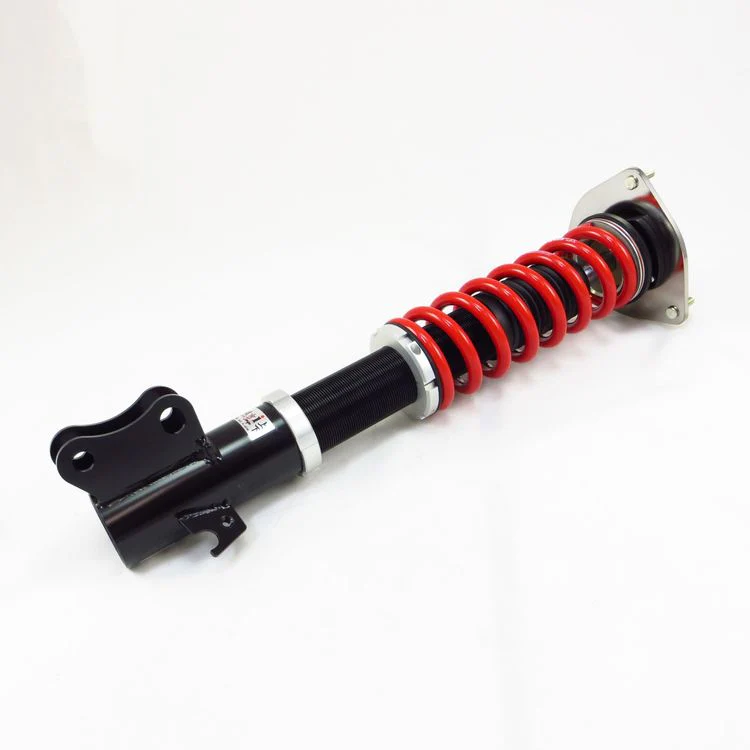

RS-R Subaru Forester 2014-2018 Best*i Jouge Coilover
Product Details
Part Number: XBIJF908M Compatibility: 2014-2018 Subaru Forester Chassis code: SJ5/SJG
Preset Approximate Height
Front: +15mm to +10mm (+0.6in to +0.4in) Rear: +10mm to +5mm (+0.4in to +0.2in)
Maximum Adjustment Range
Front: +75mm to -90mm (+3.0in to -3.6in) Rear: +70mm to -75mm (+2.8in to -3.0in)
Recommended Adjustment Range
Front: +45mm to -25mm (+1.8in to -1.0in) Rear: +45mm to -25mm (+1.8in to -1.0in)
Spring Rate
Front: 7.00kg/mm Rear: 6.00kg/mm
Additional Information
Dampers are 36 way adjustable in the front and 24 way adjustable in the rear Warranty: 1 Year / 12,000 miles from the day of purchase
