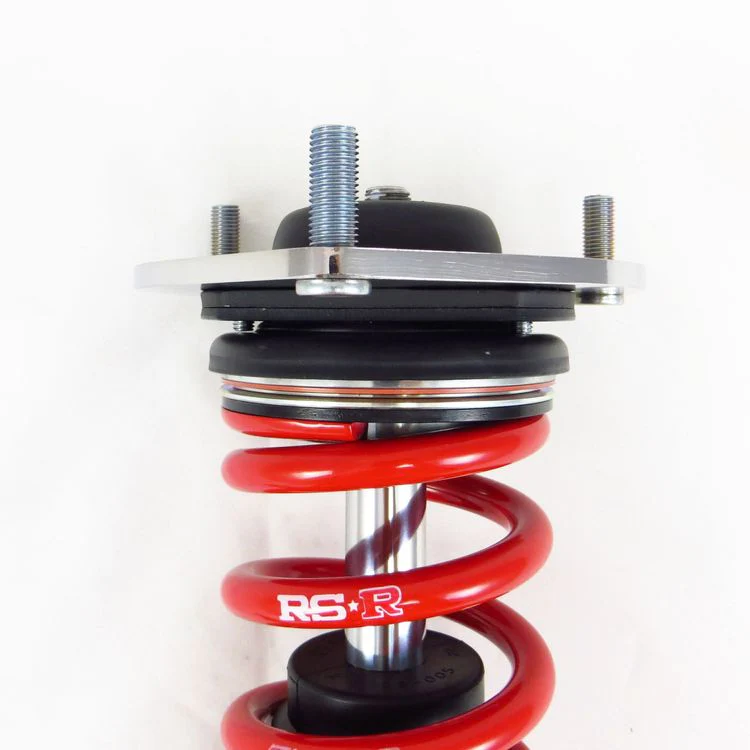

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Product Details

Part Number: XBIT813M Compatibility: 2020+ Toyota Corolla Sedan Chassis code:

Preset Approximate Height

Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -15mm to -20mm (-0.6in to -0.8in)

Maximum Adjustment Range

Front: +25mm to -50mm (+1.0in to -2.0in) Rear: 0 to -40mm (0 to - 1.6in)

Recommended Adjustment Range

Front: +5mm to -40mm (+0.2in to -1.6in) Rear: 0 to -40mm (0 to -1.6in)

Spring Rate

Front: 6.00kg/mm Rear: 6.00kg/mm

Additional Information

Dampers are 24 way adjustable in the front and 36 way adjustable in the rear Warranty: 1 Year / 12,000 miles from the day of purchase
