Compatible with Factory AVS System

Product Details

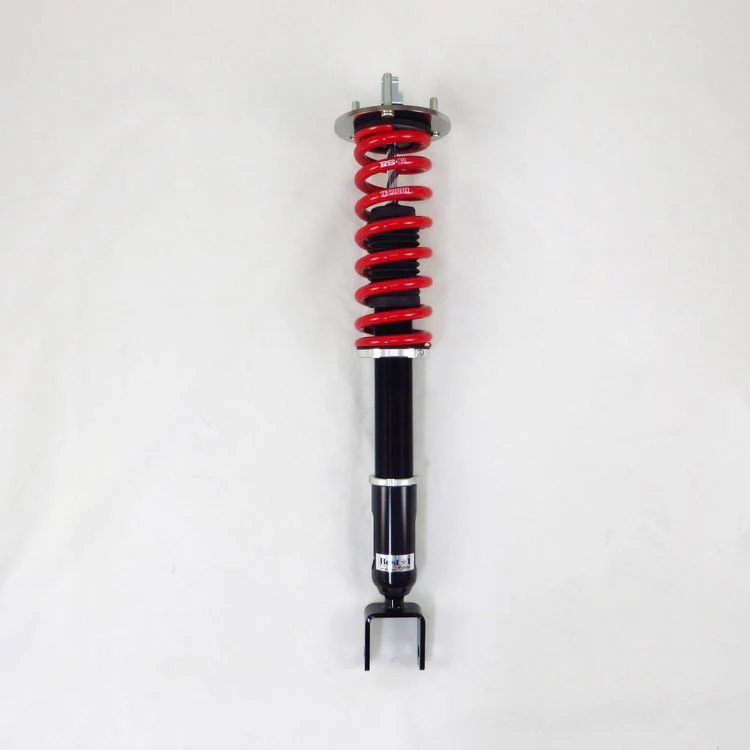

Part Number: XBIT175MA Compatibility: 2016-2020 Lexus GS350 F-Sport RWD and 2013-2015 GS450H RWD Chassis code: GRL12 and GWL10

Preset Approximate Height: GS350 F-Sport

Front: -35mm to -40mm (-1.4in to -1.6in) Rear: -35mm to -40mm (-1.4in to -1.6in)

Preset Approximate Height: GS450H

Front: -25mm to -30mm (-1.0in to -1.2in) Rear: -30mm to -35mm (-1.2in to -1.4in)

Maximum Adjustment Range: GS350 F-Sport

Front: +20mm to -100mm (+0.8in to -4.0in) Rear: -10mm to -65mm (-0.4in to -2.6in)

Maximum Adjustment Range: GS450H

Front: +25mm to -115mm (+1.0in to - 4.6in) Rear: -15mm to -70mm (-0.6in to -2.8in)

Recommended Adjustment Range: GS350 F-Sport

Front: -5mm to -55mm (-0.2in to -2.2in) Rear: -10mm to -65mm (-0.4in to -2.6in)

Recommended Adjustment Range: GS450H

Front: -10mm to -65mm (-0.4in to -2.6in) Rear: -15mm to -70mm (-0.6in to -2.8in)

Spring Rate: Both

Front: 9.00kg/mm Rear: 8.30kg/mm

Additional Information

Compatible with Factory AVS System. 24-Way Damper Force Adjustment Warranty: 1 Year / 12,000 miles from the day of purchase

Specification

Compatibility
