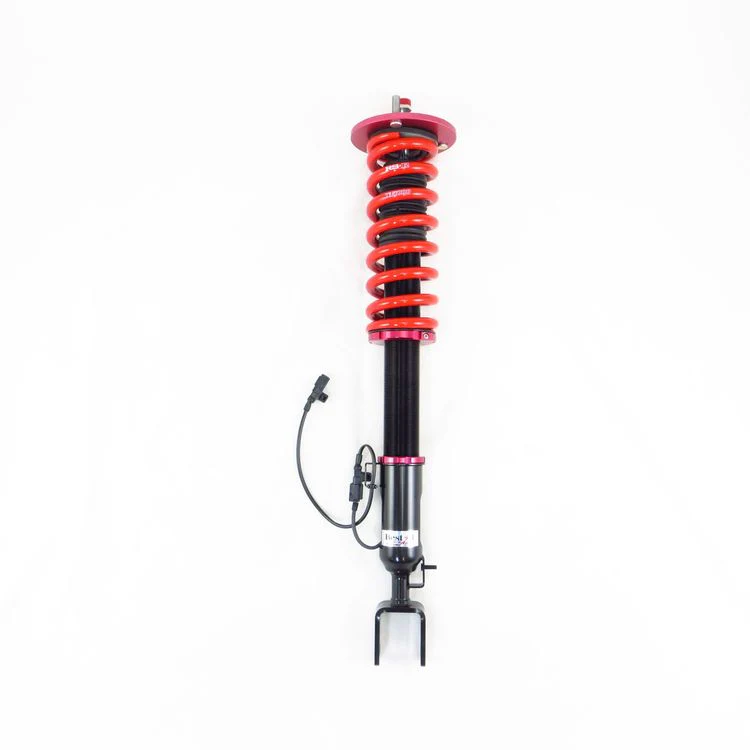

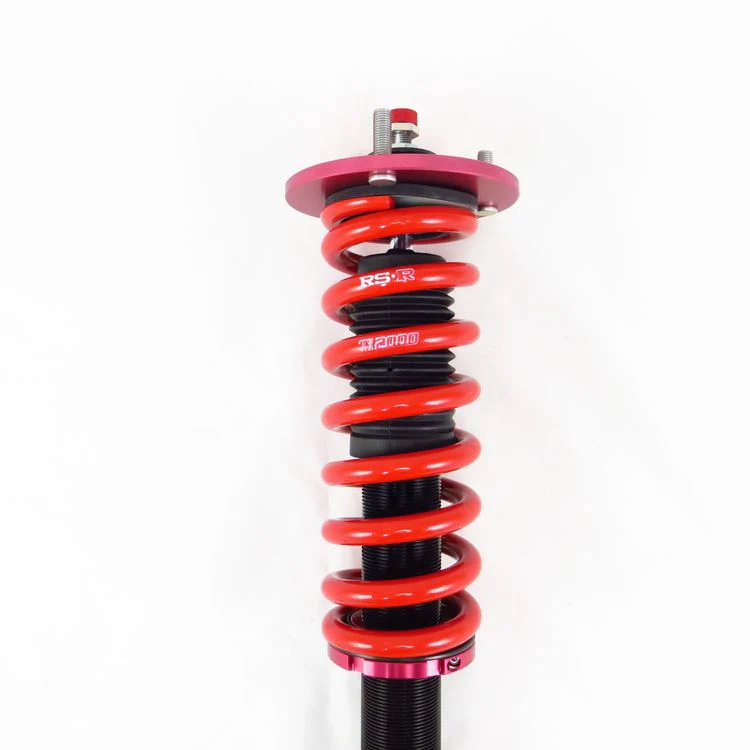

RS-R Lexus LC500h/500 2018+ Best*i Active Coilover
Product Details
Part Number: XBIT981MA Compatibility: 2018+ Lexus LC500h/500 Chassis code: GWZ100 / URZ100
Preset Approximate Height: LC500h
Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -15mm to -20mm (-0.6in to -0.8in)
Maximum Adjustment Range: LC500h
Front: +45mm to -135mm (+1.8in to -5.4in) Rear: +50mm to -65mm (+2.0in to -2.6in)
Recommended Adjustment Range: LC500h
Front: +20mm to -40mm (+0.8in to -1.6in) Rear: +10mm to -35mm (+0.4in to -1.4in)
Preset Approximate Height: LC500
Front: -20mm to -25mm (-0.8in to -1.0in) Rear: -20mm to -25mm (-0.8in to -1.0in)
Maximum Adjustment Range: LC500
Front: +50mm to -130mm (+2.0in to -5.2in) Rear: +60mm to -65mm (+2.4in to -2.6in)
Recommended Adjustment Range: LC500
Front: +20mm to -35mm (+0.8in to -1.4in) Rear: +20mm to -35mm (+0.8in to -1.4in)
Spring Rate: Both
Front: 10.0kg/mm Rear: 5.00kg/mm
Additional Information
This is compatible with the factory AVS system Fitment is unconfirmed on convertible models Warranty: 1 Year / 12,000 miles from the day of purchase
Specification
Compatibility
Product Details
Part Number: XBIT981MA Compatibility: 2018+ Lexus LC500h/500 Chassis code: GWZ100 / URZ100
Preset Approximate Height: LC500h
Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -15mm to -20mm (-0.6in to -0.8in)
Maximum Adjustment Range: LC500h
Front: +45mm to -135mm (+1.8in to -5.4in) Rear: +50mm to -65mm (+2.0in to -2.6in)
Recommended Adjustment Range: LC500h
Front: +20mm to -40mm (+0.8in to -1.6in) Rear: +10mm to -35mm (+0.4in to -1.4in)
Preset Approximate Height: LC500
Front: -20mm to -25mm (-0.8in to -1.0in) Rear: -20mm to -25mm (-0.8in to -1.0in)
Maximum Adjustment Range: LC500
Front: +50mm to -130mm (+2.0in to -5.2in) Rear: +60mm to -65mm (+2.4in to -2.6in)
Recommended Adjustment Range: LC500
Front: +20mm to -35mm (+0.8in to -1.4in) Rear: +20mm to -35mm (+0.8in to -1.4in)
Spring Rate: Both
Front: 10.0kg/mm Rear: 5.00kg/mm
Additional Information
This is compatible with the factory AVS system Fitment is unconfirmed on convertible models Warranty: 1 Year / 12,000 miles from the day of purchase
Specification
Compatibility
Original: $200,814.54
-70%$200,814.54
$60,244.36Description
Product Details
Part Number: XBIT981MA Compatibility: 2018+ Lexus LC500h/500 Chassis code: GWZ100 / URZ100
Preset Approximate Height: LC500h
Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -15mm to -20mm (-0.6in to -0.8in)
Maximum Adjustment Range: LC500h
Front: +45mm to -135mm (+1.8in to -5.4in) Rear: +50mm to -65mm (+2.0in to -2.6in)
Recommended Adjustment Range: LC500h
Front: +20mm to -40mm (+0.8in to -1.6in) Rear: +10mm to -35mm (+0.4in to -1.4in)
Preset Approximate Height: LC500
Front: -20mm to -25mm (-0.8in to -1.0in) Rear: -20mm to -25mm (-0.8in to -1.0in)
Maximum Adjustment Range: LC500
Front: +50mm to -130mm (+2.0in to -5.2in) Rear: +60mm to -65mm (+2.4in to -2.6in)
Recommended Adjustment Range: LC500
Front: +20mm to -35mm (+0.8in to -1.4in) Rear: +20mm to -35mm (+0.8in to -1.4in)
Spring Rate: Both
Front: 10.0kg/mm Rear: 5.00kg/mm
Additional Information
This is compatible with the factory AVS system Fitment is unconfirmed on convertible models Warranty: 1 Year / 12,000 miles from the day of purchase
