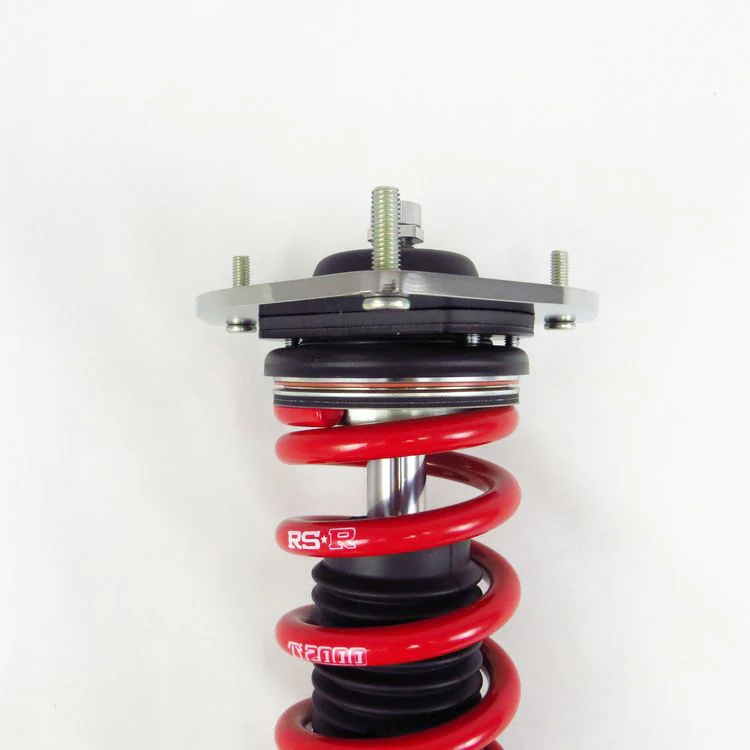

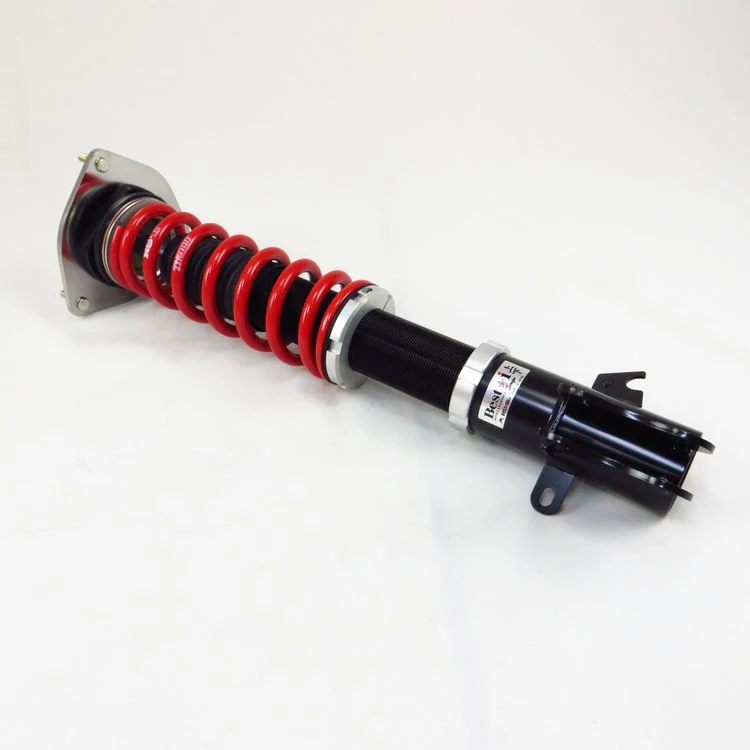

RS-R Subaru Crosstrek 2013-2017 Best*i Jouge Coilover
Product Details
Part Number: XBIF513M Compatibility: 2013-2017 Subaru Crosstrek Chassis code: GP7
Preset Approximate Height
Front: +10mm to +5mm (+0.4in to +0.2in) Rear: +10mm to +5mm (+0.4in to +0.2in)
Maximum Adjustment Range
Front: +70mm to -90mm (+2.8in to -3.6in) Rear: +65mm to -55mm (+2.6in to -2.2in)
Recommended Adjustment Range
Front: +40mm to -25mm (+1.6in to -1.0in) Rear: +40mm to -25mm (+1.6in to -1.0in)
Spring Rate
Front: 6.00kg/mm Rear: 5.00kg/mm
Additional Information
Fitment is unconfirmed on the hybrid model Dampers are 36 way adjustable in the front and 24 way adjustable in the rear Warranty: 1 Year / 12,000 miles from the day of purchase
Specification
Compatibility
Product Details
Part Number: XBIF513M Compatibility: 2013-2017 Subaru Crosstrek Chassis code: GP7
Preset Approximate Height
Front: +10mm to +5mm (+0.4in to +0.2in) Rear: +10mm to +5mm (+0.4in to +0.2in)
Maximum Adjustment Range
Front: +70mm to -90mm (+2.8in to -3.6in) Rear: +65mm to -55mm (+2.6in to -2.2in)
Recommended Adjustment Range
Front: +40mm to -25mm (+1.6in to -1.0in) Rear: +40mm to -25mm (+1.6in to -1.0in)
Spring Rate
Front: 6.00kg/mm Rear: 5.00kg/mm
Additional Information
Fitment is unconfirmed on the hybrid model Dampers are 36 way adjustable in the front and 24 way adjustable in the rear Warranty: 1 Year / 12,000 miles from the day of purchase
Specification
Compatibility
Description
Product Details
Part Number: XBIF513M Compatibility: 2013-2017 Subaru Crosstrek Chassis code: GP7
Preset Approximate Height
Front: +10mm to +5mm (+0.4in to +0.2in) Rear: +10mm to +5mm (+0.4in to +0.2in)
Maximum Adjustment Range
Front: +70mm to -90mm (+2.8in to -3.6in) Rear: +65mm to -55mm (+2.6in to -2.2in)
Recommended Adjustment Range
Front: +40mm to -25mm (+1.6in to -1.0in) Rear: +40mm to -25mm (+1.6in to -1.0in)
Spring Rate
Front: 6.00kg/mm Rear: 5.00kg/mm
Additional Information
Fitment is unconfirmed on the hybrid model Dampers are 36 way adjustable in the front and 24 way adjustable in the rear Warranty: 1 Year / 12,000 miles from the day of purchase
